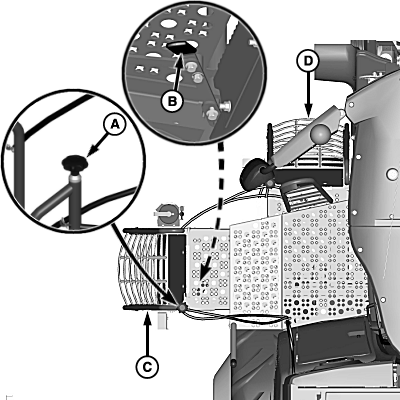

Cab Ladder Positions (Single Tire Configuration)

CAUTION:

H96381
H96381-UN-14MAY10

A - Handle

B - Lever

C - Field Position

D - Roadway Driving Position

Do not ride or attempt to climb front or rear ladders while machine is moving.

Ladder can be positioned from ground or on ladder landing with handle (A) or lever (B).

If ladder latch appears loose, clean out latch pin area. Do not use oil or grease in this area.

Swing ladder forward or rearward and lock into these different positions:

  • Position (C): is for normal operating field conditions.
  • Position (D): is for transporting machine on public roadways.

CAUTION: Always swing ladder to position (D) before transporting on public roadways in order to reduce machine width and position marker/hazard light towards oncoming motorists.
