Warning Lights, Road Lights, Field Lights—Replacing

H96616
H96616-UN-25MAY10

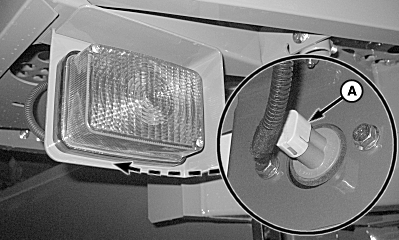

Front Right-Hand Warning Light Shown

A - Bulb Assembly

Turn bulb assembly (A) counterclockwise and remove.

Remove and replace bulb.

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Push in bulb assembly and turn clockwise to install into housing.

OUO6075,0000780-19-20101104
