Side Finder Lights and Cleaning Shoe Lights—Replacing

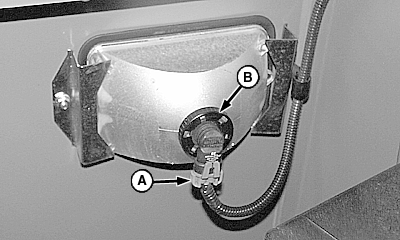

H57680
H57680-UN-28MAY99

A - Connector

B - Retainer Ring

Disconnect wiring harness connector (A) from bulb assembly.

Push in and twist retainer ring (B) counterclockwise and remove.

Remove and replace bulb.

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Install bulb assembly in reverse order and connect wiring harness.

OUO6075,0000782-19-20101104
