Cab Headlight Bulb—Replacing

CAUTION:

H96621
H96621-UN-25MAY10

H96622
H96622-UN-25MAY10

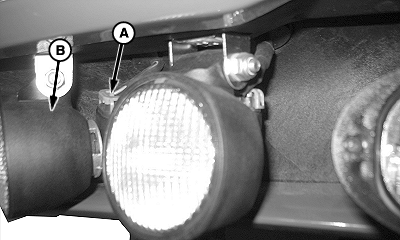

A - Connector

B - Headlight Assembly

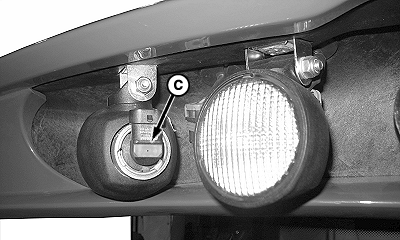

C - Bulb Assembly

Raise feeder house and lower safety stop before replacing or adjusting headlights.

Disconnect wiring harness connector (A) from headlight assembly (B).

Rotate light housing toward outside of cab.

Turn bulb assembly (C) counterclockwise and remove.

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Replace bulb.

Push in bulb assembly and turn clockwise to install into housing.

Rotate light housing to previous operating position and connect wiring harness.

Repeat on remaining lights as needed.
