Cab Halogen Light Bulb—Replacing

CAUTION:

H96625
H96625-UN-25MAY10

H96626
H96626-UN-25MAY10

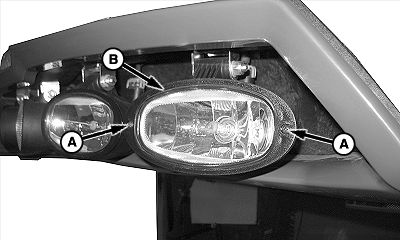

A - Screws

B - Face Plate Lens

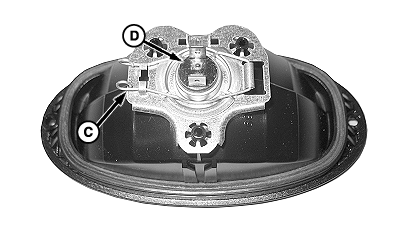

C - Clip

D - Bulb Assembly

Raise feeder house and lower safety stop before replacing or adjusting headlights.

Remove screws (A) and face plate lens (B) from housing.

Squeeze clips (C) to remove bulb assembly (D).

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Remove and replace bulb.

Attach bulb assembly using clips on light bulb base.

Align face plate lens with connector inside housing and retain with screws.

Repeat on remaining lights as needed.

OUO6075,0000787-19-20101104
