Beacon Light Bulb—Replacing

CAUTION:

H96613
H96613-UN-25MAY10

H96614
H96614-UN-25MAY10

H96615
H96615-UN-25MAY10

A - Lens

B - Clip

C - Locking Tab

D - Bulb Assembly

E - Connector

Raise feeder house and lower safety stop before replacing beacon lights.

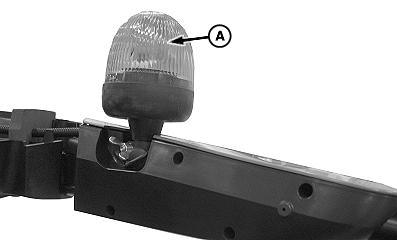

Push down on lens (A) and turn counterclockwise to remove.

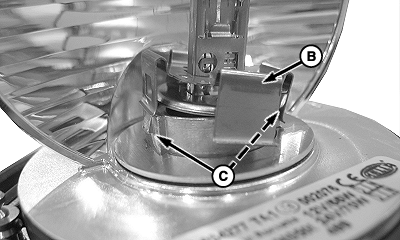

Pry clip (B) from locking tab (C).

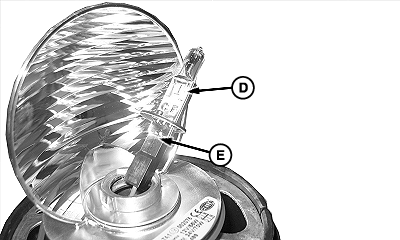

Remove bulb assembly (D) from connector (E).

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Replace bulb and install in reverse order.

Repeat on remaining lights as needed.

OUO6075,000078A-19-20101104
