Refrigerator (If Equipped)

NOTE:

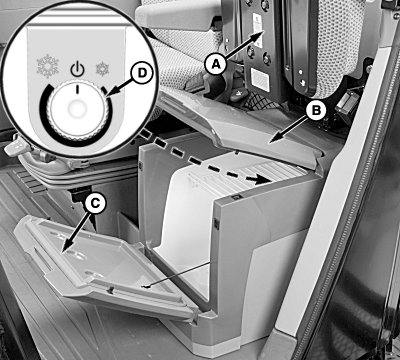

H96632
H96632-UN-02NOV10

A - Seat Bottom

B - Top Cover

C - Front Cover

D - Temperature Control Dial

Refrigerator operates only when key switch is ON and MUST remain plugged into the auxiliary outlet to keep food or beverages cold.

Refrigerator provides a space to keep food or beverages cool throughout the day.

Raise seat bottom (A) to open refrigerator top cover (B).

Refrigerator front cover (C) can also be opened without raising seat bottom.

Turn temperature control dial (D) clockwise to decrease temperature or counterclockwise to increase temperature.

OUO6075,000078F-19-20101102
