Left-Hand Armrest and Seat Back (Basic Seat)—Adjusting

H97562
H97562-UN-02JUN11

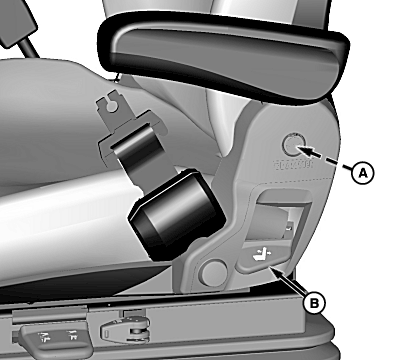

A— Armrest Height Adjustment remove round cap from cover and loosen 13 mm (1/2 in.) nut. Adjust armrest to desired position and tighten nut to specification and replace cap.

ItemMeasurementSpecification
NutTorque25 N·m (221 lb.-in.)

B— Backrest Angle Adjustment Handle adjusts seat back angle. Pull up on handle and adjust backrest to desired position and release handle.
