Concave Types

H54506
H54506-UN-23MAR99

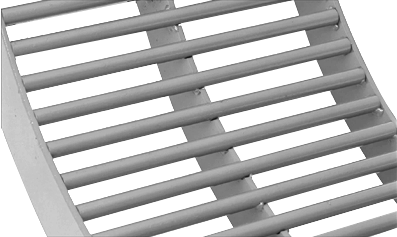

Round Bar Multi Crop Concave

H54507
H54507-UN-25JUN99

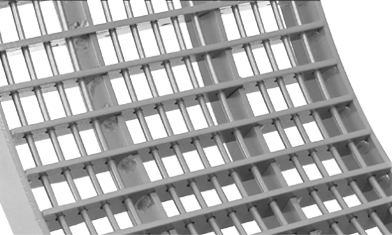

Large Wire Concave

H54508
H54508-UN-22JUN99

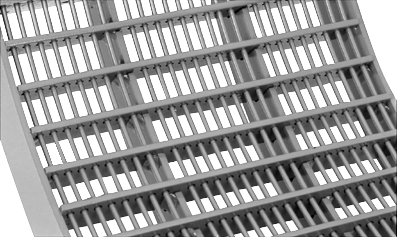

Small Wire Concave

Three different concaves are available for different crop and crop conditions.

  • Round bar multi crop concave is used for corn and soybeans.
  • Large wire concave is used for rice, soybeans, and grain sorghum.
  • Small wire concave is used for small grains.

OUO6075,00007A8-19-20100602
