Left-Hand Armrest and Seat Back (Premium Seat)—Adjusting

H96740
H96740-UN-02JUN11

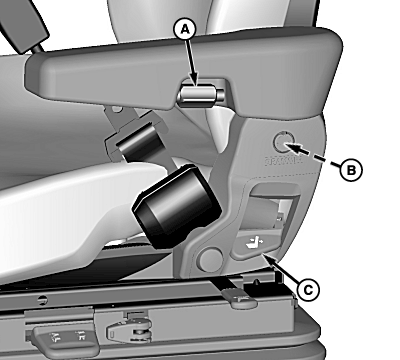

A— Armrest Angle Adjustment Knob adjusts armrest up or down. Rotate knob clockwise to lower and counterclockwise to raise.

B— Armrest Height Adjustment remove round cap from cover and loosen 13 mm (1/2 in.) nut. Adjust armrest to desired position and tighten nut to specification and replace cap.

Item Measurement Specification

Nut Torque 25 N·m (221 lb.-in.)

C— Backrest Angle Adjustment Handle adjusts seat back angle. Pull up on handle and adjust backrest to desired position and release handle.
