Gull Wing Doors

  1. CAUTION:

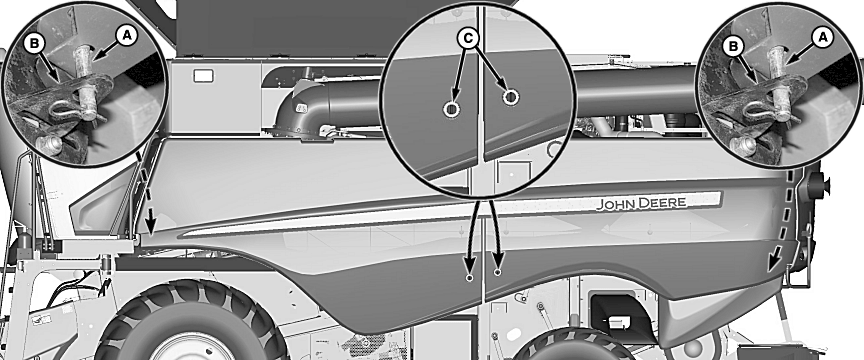

    H96774
    H96774-UN-08OCT10

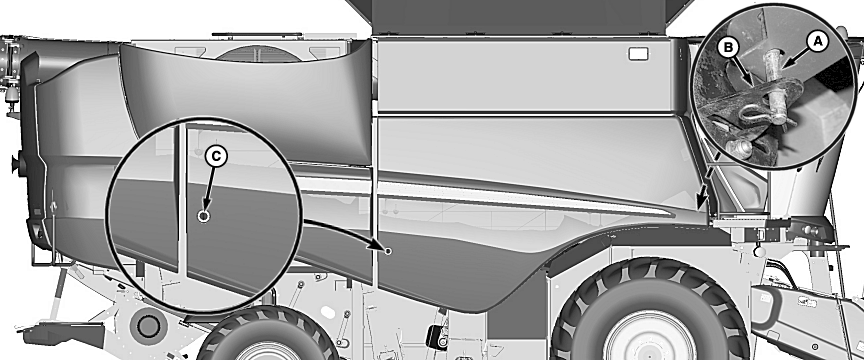

    H96775
    H96775-UN-08JUN10

    A - Pin

    B - Locking Plates

    C - Latch

    Shut OFF engine, set parking brake and remove key.

    NOTE: Pinning and latch lever operation is the same on both sides of machine.

    Remove spring clip, and pin (A) from locking plate (B). Reinstall spring clip onto pin.


  2. Turn latch (C) and pull out on gull wing doors to raise.

IMPORTANT:

H96801
H96801-UN-09JUN10

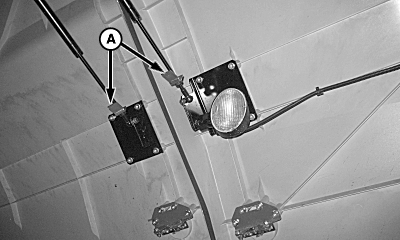

Left-hand Cylinder Stops

A - Cylinders

Do not use cylinders (A) as hand holds or hang anything on these cylinders. This could cause the cylinder rod to bend or break.

In cold weather or in high winds, these gull wing doors may ”creep” down. Position stop on rod to hold gull wing doors in place.
