Right-Hand Side Shields

CAUTION:

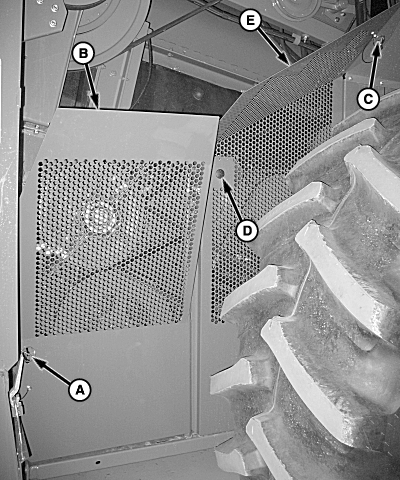

H96806
H96806-UN-09JUN10

A - Quick-Lock Pin

B - Shield

C - Quick-Lock Pin

D - Latch

E - Shield

Shut OFF engine, set parking brake and remove key.

Rear Shield and Middle Fan Shield— Remove quick-lock pin (A) and open shield (B) to service belts.

Remove quick-lock pin (C) and turn latch (D) to unlock.

Lift and remove rear shield (B) and middle fan shield (E).

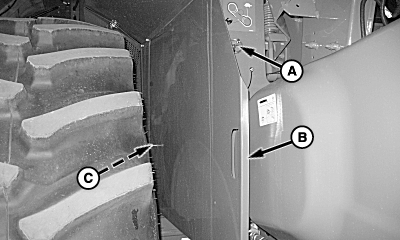

H96807
H96807-UN-09JUN10

A - Quick-Lock Pin

B - Shield

C - Cap Screw

Front Separator Shield— Remove quick-lock pin (A) and pull shield (B) forward.

Remove cap screw (C) and remove shield.

OUO6075,00007C7-19-20100928
