Separator Covers

CAUTION:

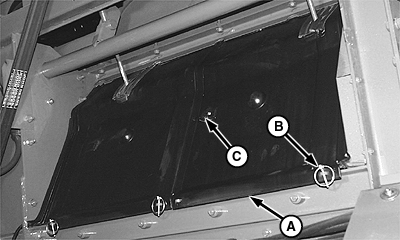

H62100-UN-20JAN00

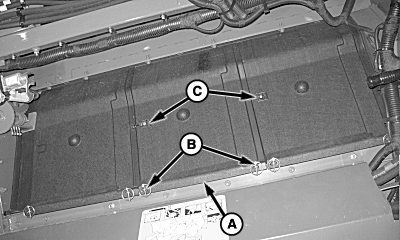

H96808-UN-09JUN10

A - Covers

B - Quick-Lock Pins

C - Spring Straps

IMPORTANT: To prevent grain loss, verify that separator covers are flush against separator and underneath edge of separator. Covers are installed starting from left-hand side, as facing the machine and working to the right.

Do not lay covers in hot sun or they will become distorted.

Two covers (A) are used on each side of the machine to seal the threshing section.

Three covers (A) on each side seal the separating section.

Quick-lock pins (B) and spring straps (C) are used to retain covers.

Remove quick-lock pins and raise spring straps to remove covers.
