Grain Tank/Engine Ladder

CAUTION:

H96783
H96783-UN-09JUN10

H102411
H102411-UN-23JUN11

A - Ladder

B - Lock-Out Pin

C - Handrail

Shut OFF engine, set parking brake and remove key.

Use ladder (A) to access grain tank.

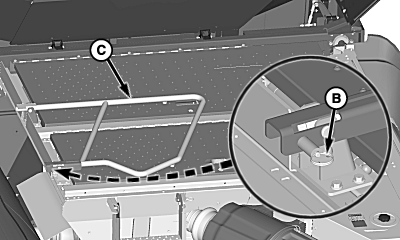

Pull lock-out pin (B) and rotate handrail (C) up until handrail locks into place.

OUO6075,00007CA-19-20110623
