Chaffer/Sieve Adjusting Switch

IMPORTANT:

H97564
H97564-UN-14SEP10

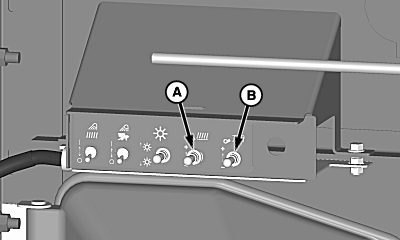

A - Chaffer Adjust Switch

B - Sieve Adjust Switch

Close chaffer/sieve louvers completely to prevent louver damage while removing chaffer/sieve.

Chaffer adjust switch (A) and sieve adjust switch (B) are located on left-hand side of machine.

Chaffer adjust switch and sieve adjust switch allows operator to open or close chaffer and sieve to various positions.

OUO6075,00007DC-19-20110321
