Unloading Auger Drive Shear Bolt

CAUTION:

H96888-UN-14JUN10

H96889-UN-14JUN10

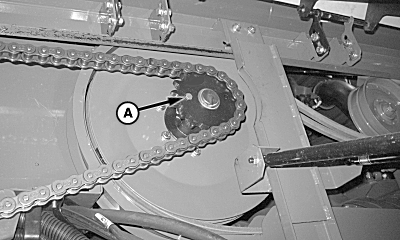

A - Shear Bolt

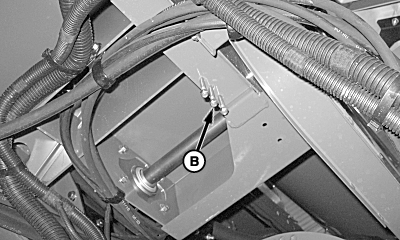

B - Shear Bolts (3 Used)

Use only John Deere supplied shear bolt (A) (cap screw through hub), see your John Deere dealer for replacement shear bolts.

Extra shear bolts (B) are provided to the right of the drive below the countershaft.

IMPORTANT: Do not install a tire inner tube or a sack to end of unloading auger. Any restriction at end of auger can cause damage to unloading auger system and could cause shear bolt failure.
