Feed Accelerator Belt—Replacing
CAUTION:
H96924-UN-16JUN10
H96925-UN-16JUN10

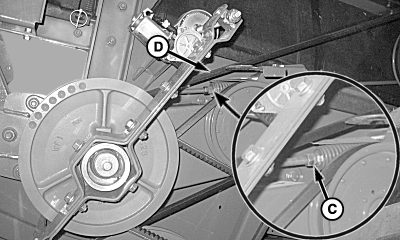

A - Nuts
B - Front Jackshaft Belt
C - Nuts
D - Belt
Shut OFF engine, set parking brake and remove key.Loosen nuts (A) to remove tension from front jackshaft belt (B).
Loosen nuts (C) to remove tension on shoe, fan, and conveyor auger belt (D).
Remove both belts from countershaft sheaves to allow removal of feed accelerator belt.
H96926-UN-16JUN10
A - Lever
B - Bracket
Push lever (A) up and out of notch in bracket (B) to relieve belt tension from accelerator belt.Standard Speed High Capacity Feed Accelerator Belt
H86422-UN-28JUL06

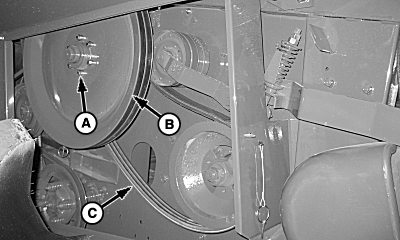

A - Cap Screws (6 Used)
B - Sheave
C - Feed Accelerator Belt
Remove cap screws (A) and sheave (B).Remove feed accelerator belt (C) and install replacement belt.
Install sheave and retain with cap screws.
Push lever up and into notch in bracket.
Adjust feed accelerator belt tension so washer is positioned between end of gauge and bottom of step.
Install shoe, fan, and conveyor auger belt and front jackshaft belt.
Adjust tension for belts so washer is positioned between end of gauge and bottom of step.
High Speed High Capacity Feed Accelerator Belt
H75090-UN-06FEB03
A - Cap Screws (6 Used)
B - Sheave
C - Feed Accelerator Belt
Remove cap screws (A) and sheave (B).Remove feed accelerator belt (C) and install replacement belt.
Install sheave and retain with cap screws.
Push lever up and into notch in bracket.
Adjust feed accelerator belt tension so washer is positioned between end of gauge and bottom of step.
Install shoe, fan, and conveyor auger belt and front jackshaft belt.
Adjust tension for belts so washer is positioned between end of gauge and bottom of step.
|
