Countershaft Right-Hand Front Belt—Adjusting

CAUTION:

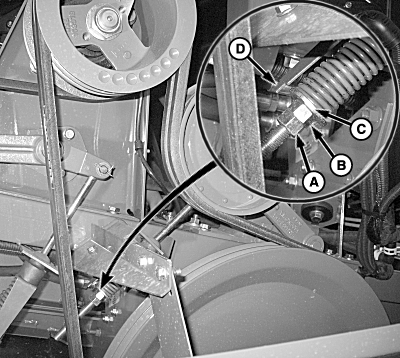

H96938
H96938-UN-17JUN10

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
