Countershaft Right-Hand Rear Belt—Adjusting

CAUTION:

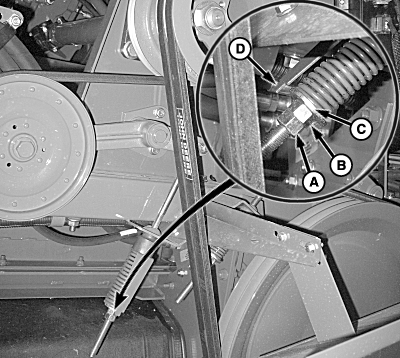

H96939
H96939-UN-17JUN10

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,00007FA-19-20100617
