Countershaft Right-Hand Rear Belt—Replacing

CAUTION:

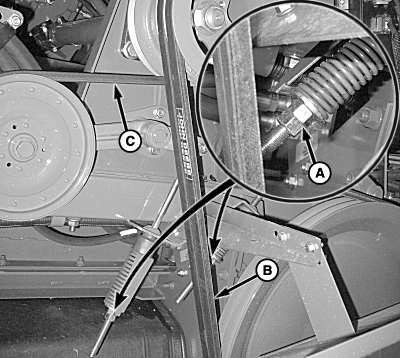

H96940
H96940-UN-17JUN10

A - Nuts

B - Front Countershaft Belt

C - Rear Countershaft Belt

Shut OFF engine, set parking brake and remove key.

Loosen nuts (A) and remove right-hand front countershaft belt (B).

Loosen nuts (A) and remove rear countershaft belt (C).

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install front countershaft belt and adjust tensioner until washer is positioned between end of gauge and bottom of step.

OUO6075,00007FB-19-20100622
