Shoe, Fan and Conveyor Auger Belt—Adjusting

CAUTION:

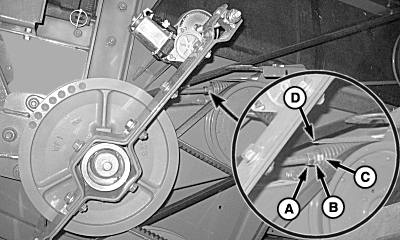

H96944
H96944-UN-17JUN10

Shield Removed for Clarity

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,00007FD-19-20100617
