Shoe, Fan and Conveyor Auger Belt—Replacing

CAUTION:

H96943
H96943-UN-17JUN10

H54683
H54683-UN-17MAY99

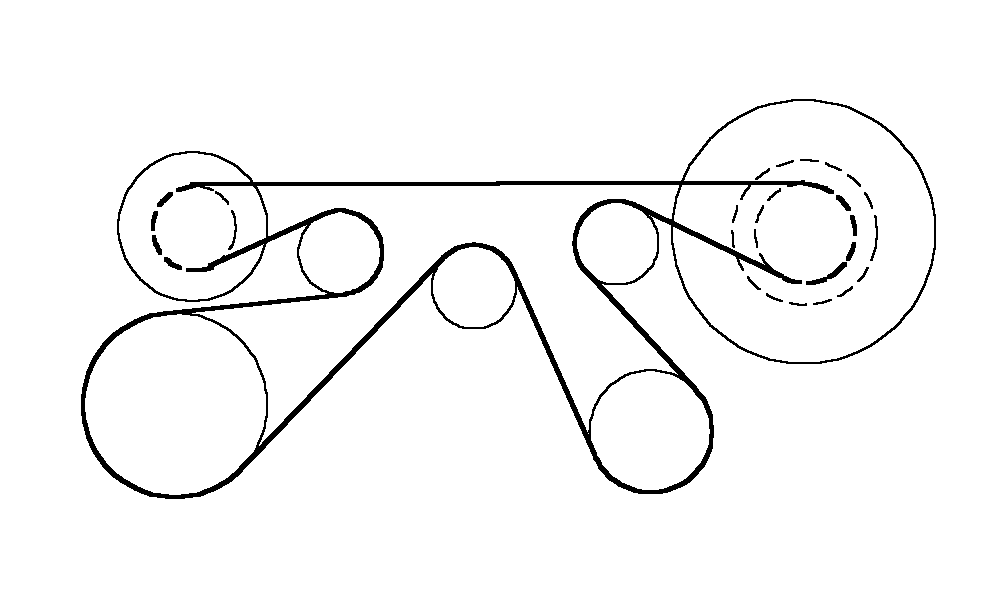

Belt Routing

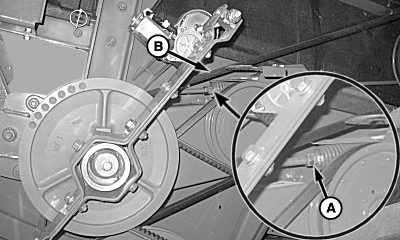

A - Nuts

B - Belt

Shut OFF engine, set parking brake and remove key.

Remove right-hand front countershaft belt and cleaning fan variable drive belts.

Loosen nuts (A) and remove shoe, fan and conveyor auger drive belt (B).

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install front countershaft belt, cleaning fan variable drive belt and adjust tensioners until washer is positioned between end of gauge and bottom of step.

OUO6075,00007FE-19-20100617
