Cleaning Fan Actuator—Adjusting

CAUTION:

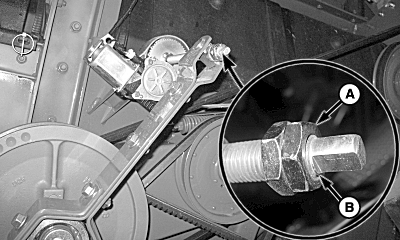

H96946
H96946-UN-17JUN10

A - Nuts

B - End of Threads

Shut OFF engine, set parking brake and remove key.

NOTE: Cleaning fan minimum/maximum speed is controlled electronically; stop nuts ensure drive protection in the event of improper electronic speed setting and must be installed as shown.

Verify nuts (A) are jammed together at end of threads (B) as shown.

OUO6075,0000800-19-20100617
