Separator Top Cover Vanes (If Equipped)

H97060
H97060-UN-22JUN10

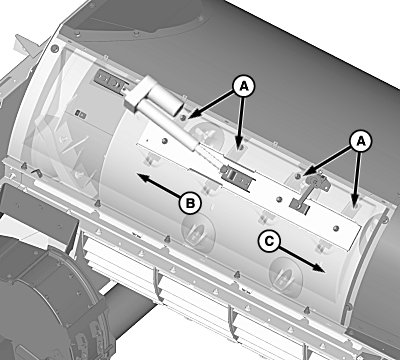

A - Separator Top Cover Vanes

B - Advanced Position

C - Standard Position

Separator top cover vanes (A) are located on right-hand side of machine behind the clean grain loading auger.

Separator top cover vanes are able to be adjusted to two different positions through software.

  • NOTE: Running separator vanes in advanced position may increase grain losses in certain crop and conditions. Crop dwell time in separator is reduced to improve straw quality.
    (B)—Advanced Position
  • (C)—Standard Position

See Residue Management Setup in CommandCenter Display Screens section for further information on how to change positions through the software.
