Back-Up Alarm

IMPORTANT:

H97997
H97997-UN-15SEP10

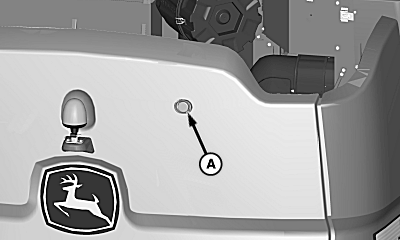

A - Back-Up Alarm

During cold weather start-up (below 0°C (32°F) back-up alarm may not activate on reverse travel until hydraulic oil is sufficiently warmed. After start-up allow engine to run at low idle for five minutes in order to warm oil.

If multi-function lever is moved rearward while engine is running, back-up alarm (A) sends an acoustical signal to warn others around the machine that the operator is backing up.

OUO6075,000082F-19-20101213
