Mirror Heater Switch (Optional)

NOTE:

H97712
H97712-UN-23AUG10

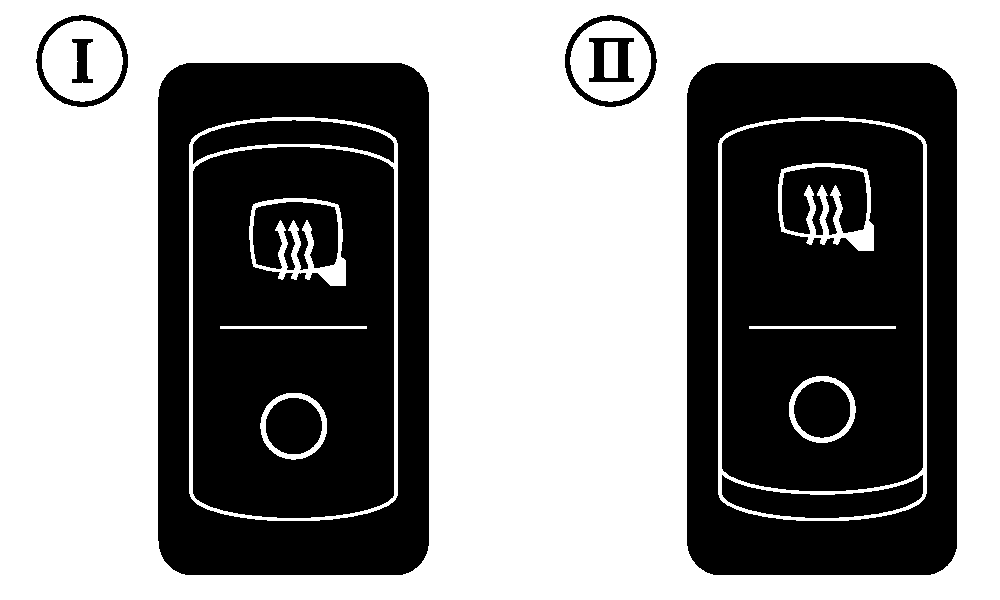

I - Mirror Heater Switch (OFF)

II - Mirror Heater Switch (ON)

Key switch must be ON or machine must be running to adjust mirrors.

Mirrors are equipped with heaters to remove ice and fog.

Mirror heater switch (I) (bottom switch pressed in) shuts power OFF. Mirror heater switch (II) (top switch pressed in) heats mirrors.

OUO6075,00008AE-19-20100820
