Map Light—Replacing
H97965-UN-13SEP10

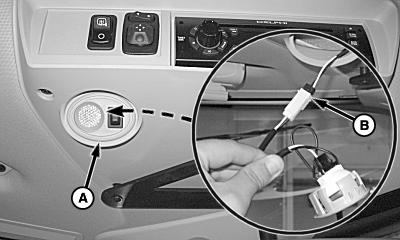

A - Map Light Assembly
B - Connector
Remove map light assembly (A) and disconnect wiring harness connector (B).Remove and replace map light assembly.
Install and orient map light assembly in reverse order as shown.
|
OUO6075,00009AF-19-20100913 |
