Crop Diverter

IMPORTANT:

H98135
H98135-UN-20SEP10

H99171
H99171-UN-23NOV10

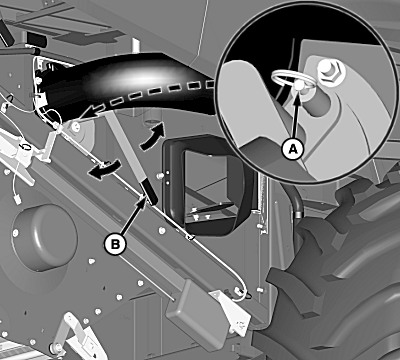

A - Lock-Out Pin

B - Crop Diverter Handle

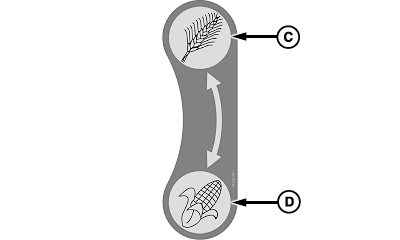

C - Small Grain Position

D - Large Grain Position

To prevent personal injury or machine damage do not move crop diverter handle when machine is running.

Small Grain Position (C):

Pull lockout pin (A) and move crop diverter handle (B) to ”UPPER” position. Crop diverter handle should be placed in ”UPPER” position when servicing cleaning shoe.

Large Grain Position (D):

NOTE: When harvesting corn or sunflowers, crop diverter handle should be in ”LOWER” position.

Pull lockout pin (A) and move crop diverter handle (B) to ”LOWER” position. Crop diverter protects cleaning shoe from damage by preventing material from being thrown forward.

OUO6075,00009BC-19-20101123
