Chopper Controller Bar (Optional)

IMPORTANT:

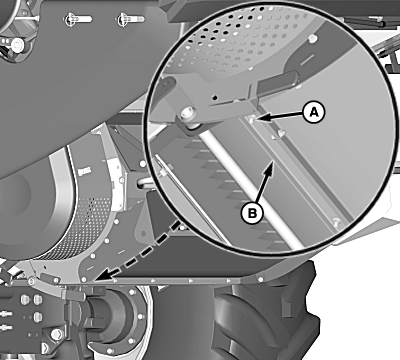

H98138
H98138-UN-21SEP10

A - Hardware

B - Controller Bar

Controller bar must be removed and placed in storage position when harvesting corn. Failure to remove controller bar can result in chaffer element damage.

Controller bar improves cut quality, distribution, and spread width in tough straw conditions. See your John Deere dealer for further information.

Remove hardware (A) and controller bar (B) from bottom side of chopper.

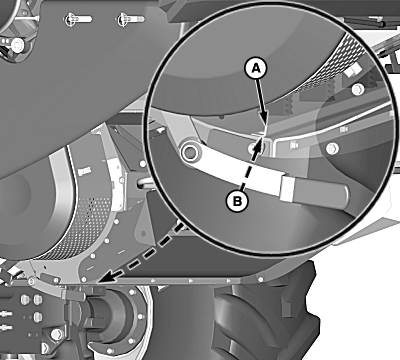

H98139
H98139-UN-21SEP10

A - Controller Bar

B - Hardware

Raise chopper fully to install controller bar (A) on inside of chopper as shown and retain with hardware (B).

OUO6075,00009BF-19-20100921
