Fine Cut Chopper Blades—Replacing and Configuration
CAUTION:

H87281-UN-01AUG07
A - Lock Nut
B - Cap Screw
C - Washers
D - Bushings
Shut OFF engine, set parking brake and remove key.
NOTE: Rotor shown illustrates blade replacement examples for
both scoop and paddle blades. Always maintain original factory provided
blade pattern.
Outer Blades:
NOTE: If removing blades or bushings for inspection purposes,
be certain to reinstall blades on SAME support from which they were
removed. This must be done to maintain balance. It is a good practice
to mark each blade before removal. Install new hardware
in the same direction as it was removed when installing or replacing
blades.

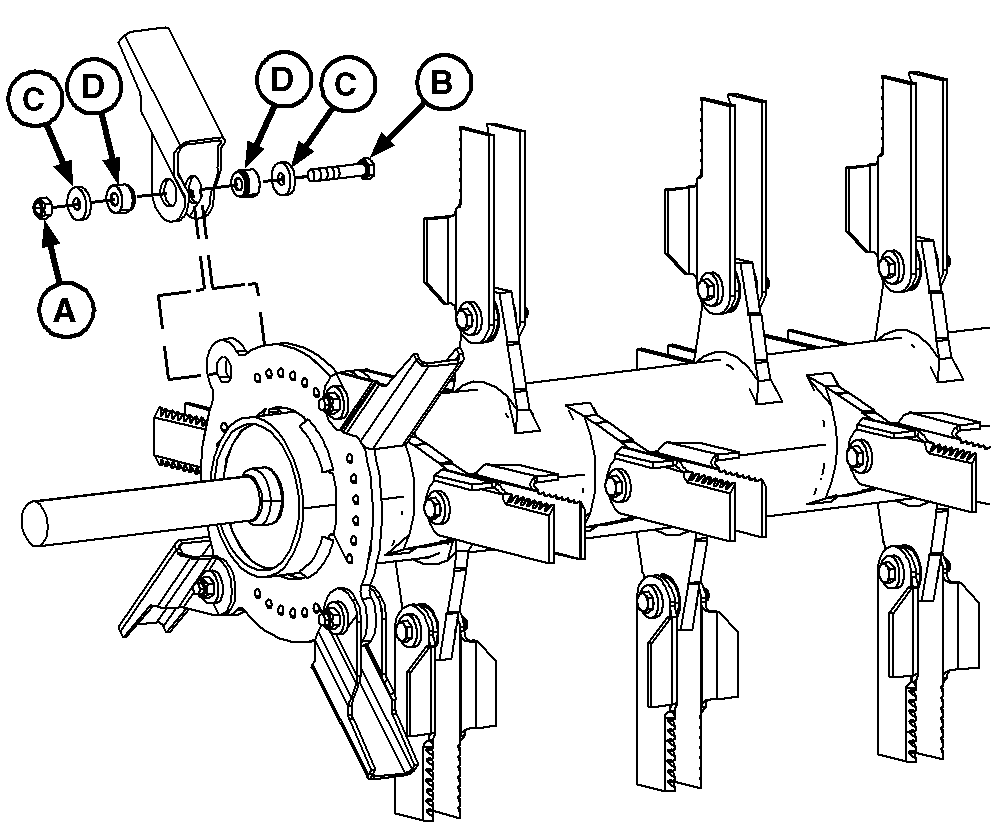

Remove lock nut (A), cap screw (B), washers (C), and bushings
(D).
Inspect and if needed replace bushings while replacing blades.
See your John Deere dealer for replacement parts.
Replace blade and install cap screw, washers, bushings, and
lock nut. Tighten nut to specification.
| Item | Measurement | Specification |
|
Chopper Blade Lock Nut | Torque | 60 N·m (44 lb.-ft.) |

H87283-UN-01AUG07

H87284-UN-01AUG07

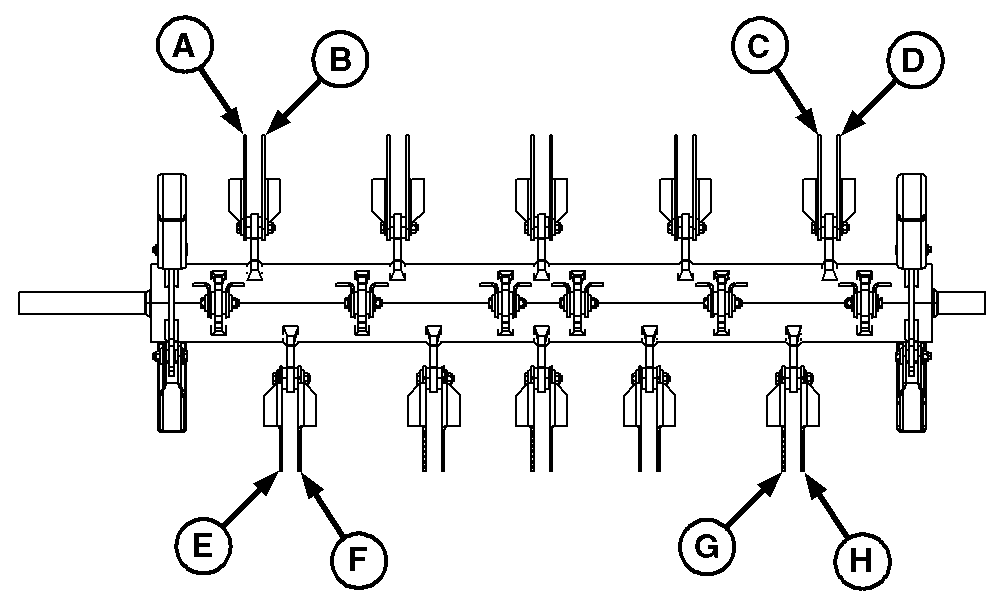

A—H - Paddle Blades

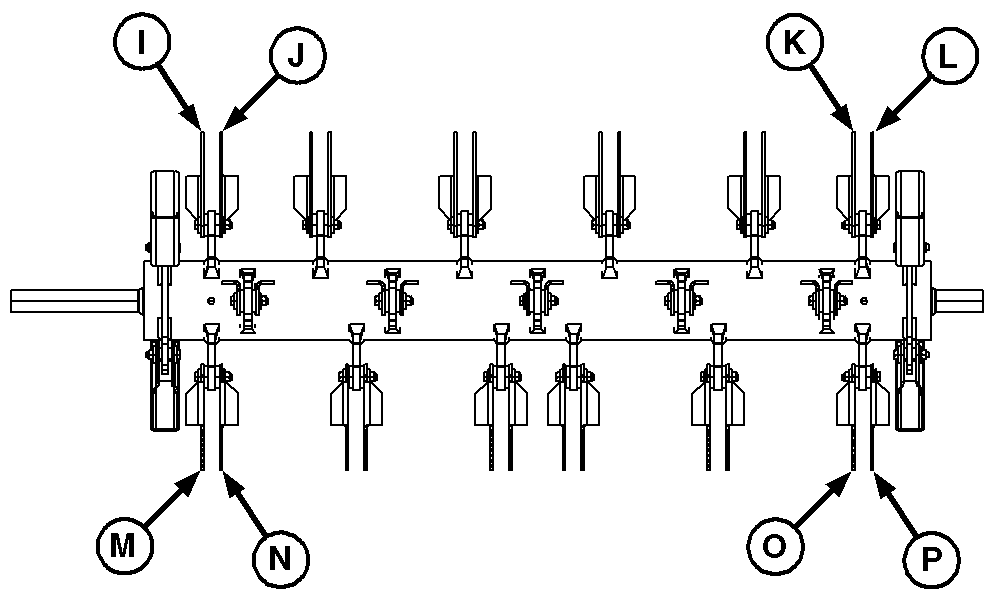

I—P - Paddle Blades
Blade Configuration:
IMPORTANT: Chopper balance MUST be maintained. Replace BOTH
blades on single support and BOTH blades on opposite support (180
degrees). Also replace four blades at opposite end of rotor, at same
axial distance from balance ring. Eight blades MUST be installed to
replace one broken blade, or all blades can be replaced at one time.
This MUST be done to maintain balance.
If blade (A) is broken, replace blades (A—H).
If blade (I) is broken, replace blades (I—P).

H98142-UN-21SEP10
A - Lock Nut
B - Cap Screw
C - Bushings
D - Bushings
Inner Blades:
NOTE: If removing blades or bushings for inspection purposes,
be certain to reinstall blades on SAME support from which they were
removed. This must be done to maintain balance. It is a good practice
to mark each blade before removal. Install new hardware
in the same direction as it was removed when installing or replacing
blades.

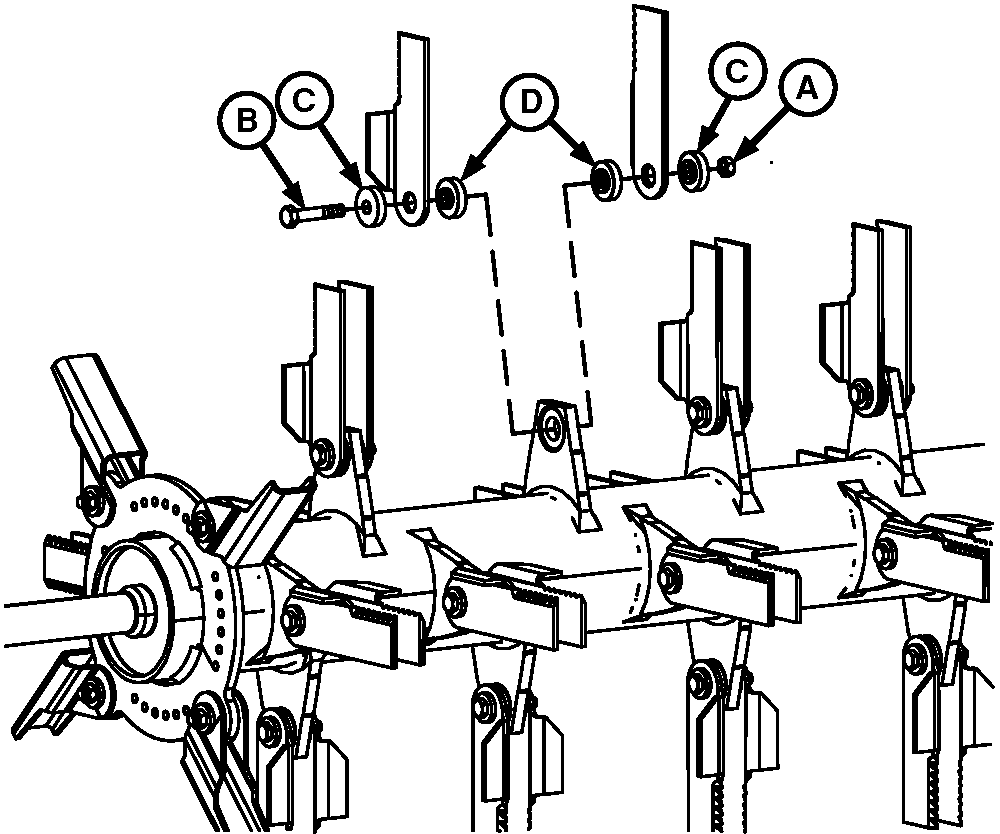

Remove lock nut (A), cap screw (B), and bushings (C and D).
Inspect and if needed replace bushings while replacing blades.
See your John Deere dealer for replacement parts.
Replace blade and install cap screw, bushings, and lock nut.
Tighten nut to specification.
| Item | Measurement | Specification |
|
Chopper Blade Lock Nut | Torque | 60 N·m (44 lb.-ft.) |
|
|
OUO6075,00009C2-19-20101117
|
|
