Chopper Blades—Centering

CAUTION:

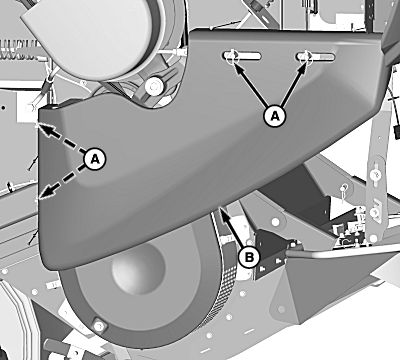

H98146
H98146-UN-21SEP10

A - Quick-Lock Pins

B - Shield

Shut OFF engine, set parking brake and remove key.

Raise chopper fully and remove quick-lock pins (A) and shield (B).

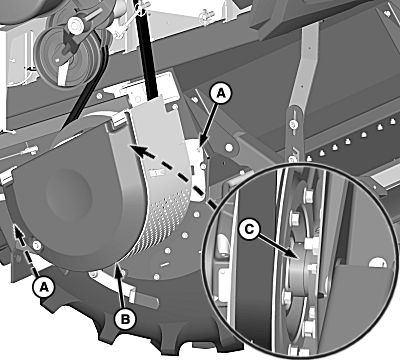

H98147
H98147-UN-21SEP10

A - Cap Screws (4 Used)

B - Shield

C - Locking Collar

Remove cap screws (A) and shield (B).

Loosen set screw and locking collar (C) on left-hand side.

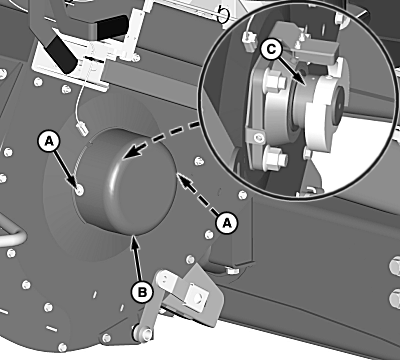

H98148
H98148-UN-21SEP10

A - Cap Screws (2 Used)

B - Bearing Cover

C - Locking Collar

Remove cap screws (A) and bearing cover (B).

Loosen set screw and locking collar (C) on right-hand side.

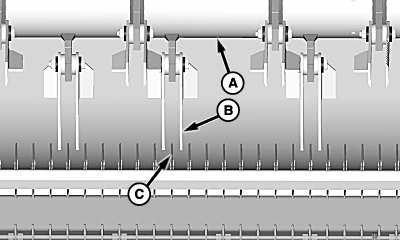

H87317
H87317-UN-30JAN07

A - Chopper Rotor

B - Rotor Blades

C - Stationary Knives

Position chopper rotor (A) right or left to ensure all rotor blades (B) clear stationary knives (C).

Tighten locking collars on both sides in direction of rotation and retain with set screws.

Install bearing cover on right-hand side and chopper shields on left-hand side.
