Chopper Drive Belt Tension—Adjusting

CAUTION:

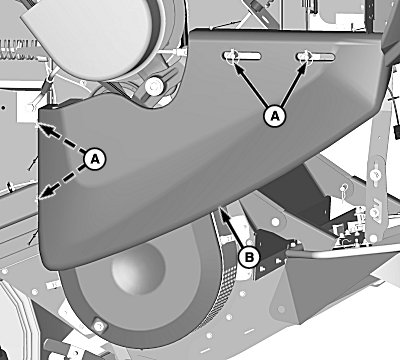

H98146
H98146-UN-21SEP10

A - Quick-Lock Pins

B - Shield

Shut OFF engine, set parking brake and remove key.

NOTE: Lower chopper fully to properly tension belts.

Remove quick-lock pins (A) and shield (B).

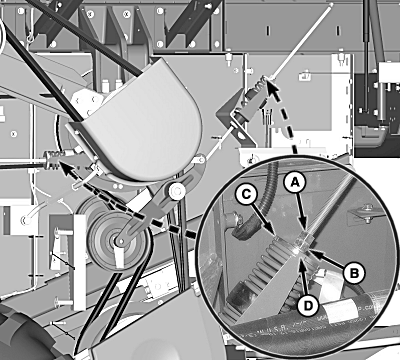

H98151
H98151-UN-21SEP10

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen lock nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

Install shield and retain with quick-lock pins.

OUO6075,00009C8-19-20101014
