Chopper Tailboard—Adjusting

CAUTION:

H98131

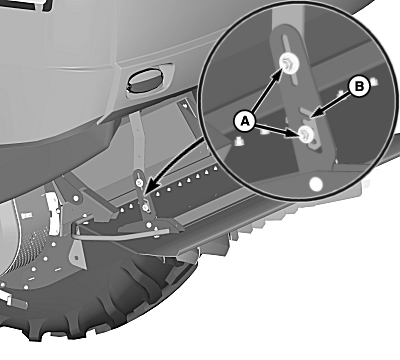

H98131-UN-20SEP10

A - Cap Screws (4 Used)

B - Notches

Shut OFF engine, set parking brake and remove key.

Loosen cap screws (A) on both sides of chopper.

Adjust chopper tailboard up or down in notches (B) to control straw spread width.

Tighten cap screws on both sides of chopper to lock into position.

OUO6075,00009CA-19-20100921
