PowerCast Tailboard—Adjusting (Optional)

CAUTION:

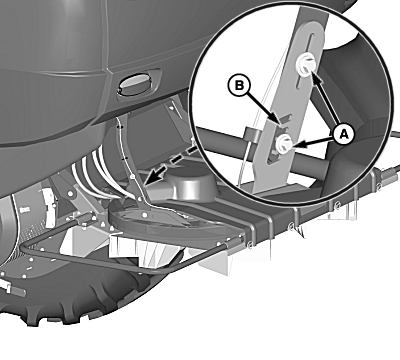

H98132
H98132-UN-20SEP10

A - Cap Screws (4 Used)

B - Notches

Do not let anyone stand behind spreading tailboard while it is running. Shut OFF engine, set parking brake and remove key before adjusting.

For best performance, powered tailboard should always run level or parallel to ground. Depending on tire combinations, it may be necessary to raise or lower tailboard.

Park machine on level ground.

Loosen cap screws (A) on both sides of chopper.

Adjust powered tailboard up or down in notches (B) to level tailboard.

Tighten cap screws on both sides of chopper to lock into position.

OUO6075,00009CC-19-20101014
