PowerCast Tailboard Blade—Replacing (Optional)

CAUTION:

H98170
H98170-UN-22SEP10

A - Lock Nut

B - Cap Screw

C - Spreader Disk Assemblies

Disk assemblies weigh approximately 13 kg (29 lb.).

IMPORTANT: Disk assemblies are left-handed and right-handed. Mark disk assembly locations before removing.

Remove lock nut (A) and cap screw (B) from spreader disk assemblies (C).

IMPORTANT:

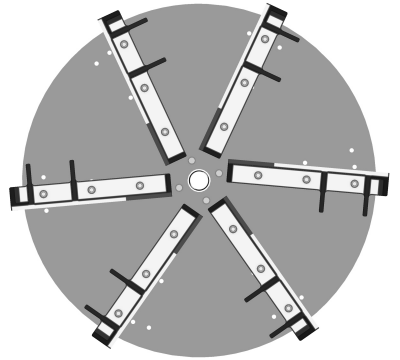

H98171
H98171-UN-22SEP10

When replacing worn or damaged blades, make sure to replace blades on opposite sides of disk at the same time to maintain disk rotational balance.

Blades are oriented in alternating hole patterns to obtain an optimum material spread. Ensure that replacement blades are put back in the same holes as previously removed.

Install replacement blades as needed and tighten hardware to specification.

Item Measurement Specification

Blade Hardware Torque 22 N·m (16 lb.-ft.)
