PowerCast Tailboard (Optional) Rear Shrouds

NOTE:

H98180
H98180-UN-22SEP10

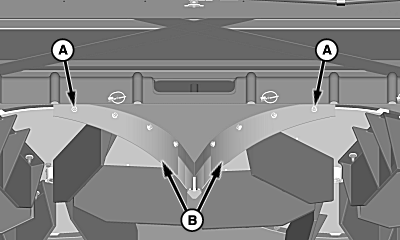

A - Hardware (8 Used)

B - Rear Shrouds

Shrouds can be removed to spread more material towards center of machine when harvesting in tough or heavy straw conditions.

Front and rear shrouds should always be installed to provide optimal material distribution when harvesting corn.

Field Position:

Shrouds are used to manage residue spread with distribution for wider platforms.

Install rear shrouds (B) behind welded strap as shown and retain with hardware (A).

H98181
H98181-UN-22SEP10

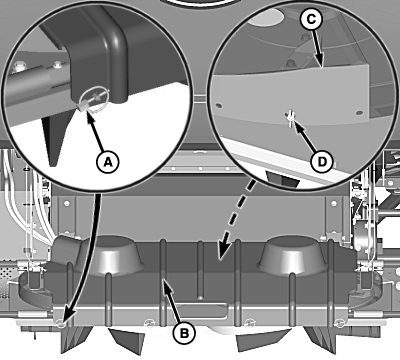

A - Quick-Lock Pins

B - Shield

C - Rear Shrouds

D - Wing Nut

Storage Position:

Remove and retain quick-lock pins (A) and shield (B).

Install rear shrouds (C) to weld stud as shown and retain with wing nut (D).

Install previously removed shield and quick-lock pins.
