Spreader—Lowering

CAUTION:

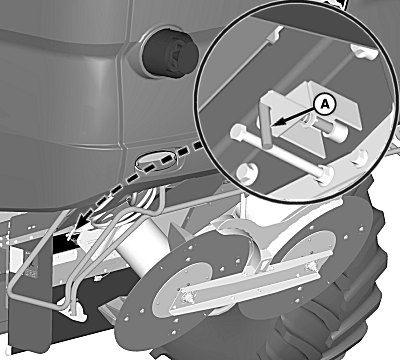

H98192
H98192-UN-23SEP10

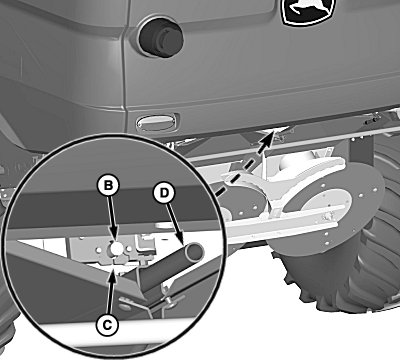

H98193
H98193-UN-23SEP10

A - Pin

B - Pin

C - Latch Assembly

D - Handle

Shut OFF engine, set parking brake and remove key.

Rotate and place pin (A) onto bracket to unlock spreader.

Release pin (B) from latch assembly (C) and lower spreader with handle (D).

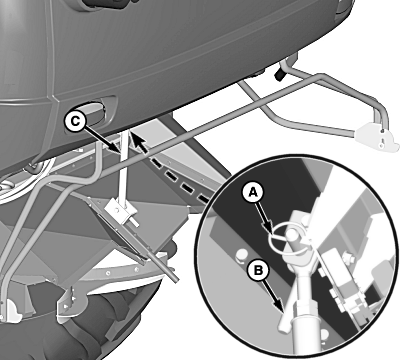

H98189
H98189-UN-23SEP10

A - Quick-Lock Pin

B - Pin

C - Support Tube

Raise support tube (C) until it aligns with hole and retain with pin (B) and quick-lock pin (A).

NOTE: Increase spreader speed until desired spread width is reached, refer to Spreader Speed Adjust Switch in CommandTouch Armrest Console section for further information.

OUO6075,00009D4-19-20101008
