Spreader Disks (Single Speed)—Replacing

CAUTION:

H98194
H98194-UN-23SEP10

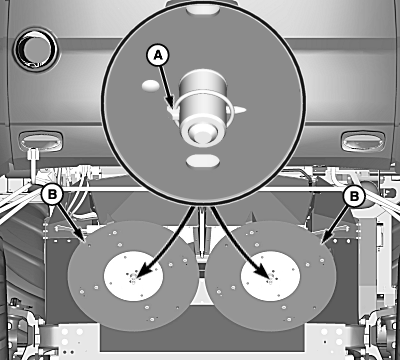

A - Quick-Lock Pin

B - Disk Assemblies

Disk assemblies weigh approximately 25 kg (55 lb).

IMPORTANT: Disk assemblies are left-handed and right-handed. Mark disk assembly locations before removing.

NOTE: Disk assemblies can be removed for service or to provide additional clearance under spreader.

Remove quick-lock pins (A) and disk assemblies (B).

IMPORTANT:

H98197
H98197-UN-23SEP10

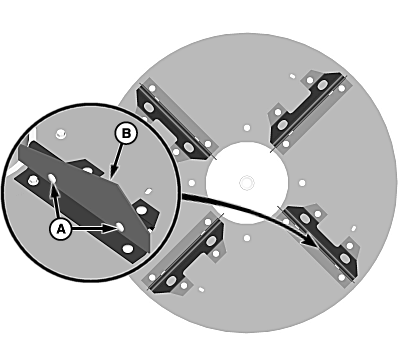

A - Hardware

B - Blade

When replacing worn or damaged blades, make sure to replace blades on opposite sides of disk at the same time to maintain disk rotational balance.

Blades are oriented in alternating hole patterns to obtain an optimum material spread. Ensure that replacement blades are put back in the same holes as previously removed.

Remove hardware (A) and blade (B).

Install replacement blades as needed and tighten hardware.
