Spreader Disks (Dual Speed)—Replacing

CAUTION:

H98195
H98195-UN-08OCT10

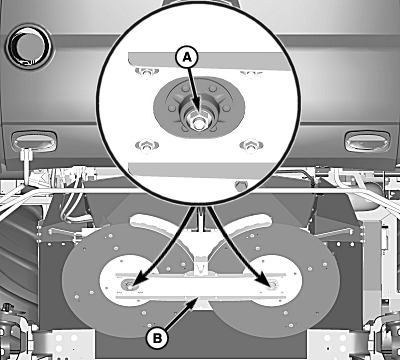

A - Nut

B - Support Shroud

Disk assemblies weigh approximately 25 kg (55 lb).

IMPORTANT: Disk assemblies are left-handed and right-handed. Mark disk assembly locations before removing.

NOTE: Disk assemblies can be removed for service or to provide additional clearance under spreader.

Remove nuts (A) and support shroud (B).

H98196
H98196-UN-23SEP10

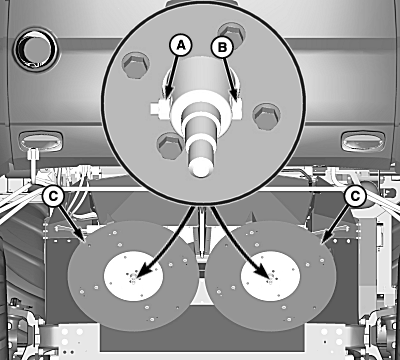

A - Nut

B - Cap Screw

C - Disk Assemblies

Remove nuts (A) and cap screws (B) from disk assemblies (C).

IMPORTANT:

H98198
H98198-UN-23SEP10

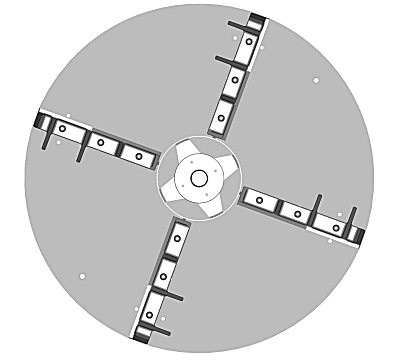

When replacing worn or damaged blades, make sure to replace blades on opposite sides of disk at the same time to maintain disk rotational balance.

Blades are oriented in alternating hole patterns to obtain an optimum material spread. Ensure that replacement blades are put back in the same holes as previously removed.

Install replacement blades as needed and tighten hardware to specification.

Item Measurement Specification

Blade Hardware Torque 22 N·m (16 lb.-ft.)
