Display Left Region Layouts

NOTE:

H98420-UN-08OCT10

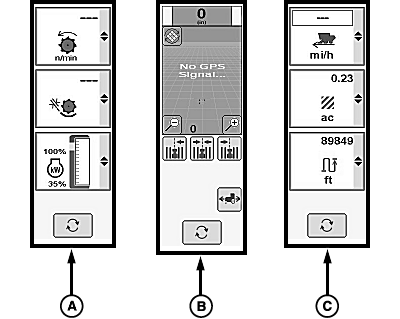

• Detail Machine Settings (A): allows operator the ability to choose and monitor three left region boxes at one time. Each box displays an ongoing function or specific machine status.
• Guidance Information (B): allows operator to view and change guidance settings.
• Performance Monitor Settings (C): allows operator the ability to choose and monitor three left region boxes at one time. Each box displays an ongoing function or specific machine status.
