Advanced PowerCast Spreader Disks—Replacing

CAUTION:

H98693-UN-19OCT10

H98694-UN-19OCT10

A - Hardware

B - Bracket

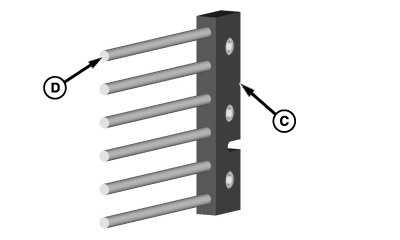

C - Rubber Support

D - Fingers

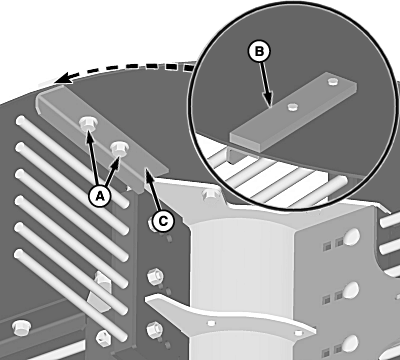

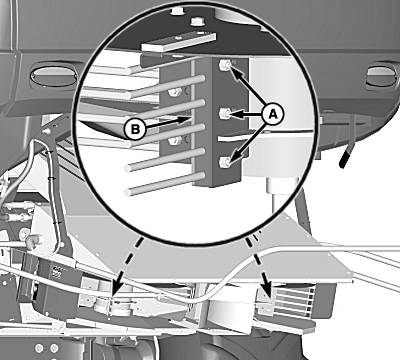

Remove hardware (A) and bracket (B).

Inspect and replace rubber support (C) and fingers (D) as needed. See your John Deere dealer for replacement parts.

IMPORTANT: Replace all rubber supports to maintain disk rotational balance.

Install replacement rubber support and fingers as needed.

Ensure that rubber support and bracket are put back in the same holes as previously removed.

Tighten hardware and repeat as needed on remaining disk blades.

H98695-UN-19OCT10

H102241-UN-23JUN11

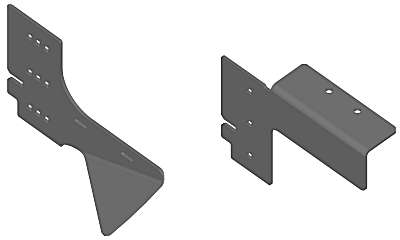

Small Grain Paddle / Corn Paddle

A - Cap Screws

B - Plate

C - Paddle Brackets

Inspect and replace paddle bracket (C) as needed. See your John Deere dealer for replacement parts.

IMPORTANT: Replace all paddle brackets to maintain disk rotational balance.

Install replacement paddle bracket as needed.

Tighten hardware and repeat as needed on remaining disk blades.

NOTE: Remove small grain paddles and install corn paddles as needed for crop being harvested.
