Overshot Beater Floor (If Equipped)—Removing

CAUTION:

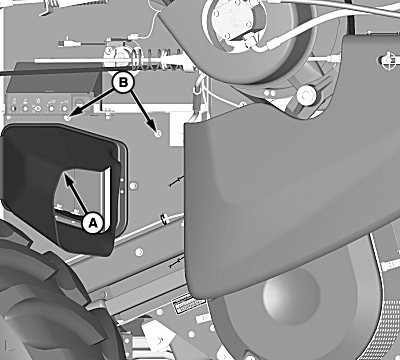

H98720-UN-20OCT10

H98721-UN-20OCT10

A - Air Chutes

B - Cap Screws (2 Used)

C - Overshot Beater Floor

NOTE: Overshot beater floor should be installed for corn/large grain and removed for small grain.

Open air chute (A) located on both sides of chopper.

Remove cap screws (B) located above air chutes on both sides of chopper and remove overshot beater floor (C).
