Fascia Light Bulb (If Equipped)—Replacing

CAUTION:

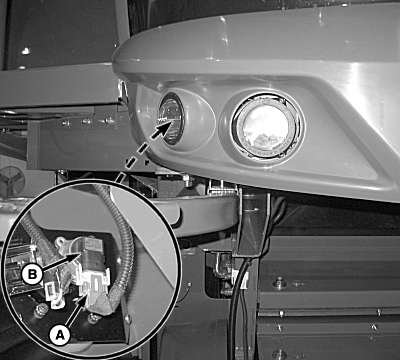

H98976
H98976-UN-02NOV10

A - Connector

B - Bulb Assembly

Lower feeder house fully before replacing or adjusting headlights.

Disconnect wiring harness connector (A) from bulb assembly (B).

Turn bulb assembly counterclockwise and remove.

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Remove and replace bulb.

Push in bulb assembly and turn clockwise to install into housing and connect wiring harness.

Repeat on remaining lights as needed.

OUO6075,0000A6F-19-20101104
