Armrest Console Controls

NOTE:

H95194-UN-11OCT10

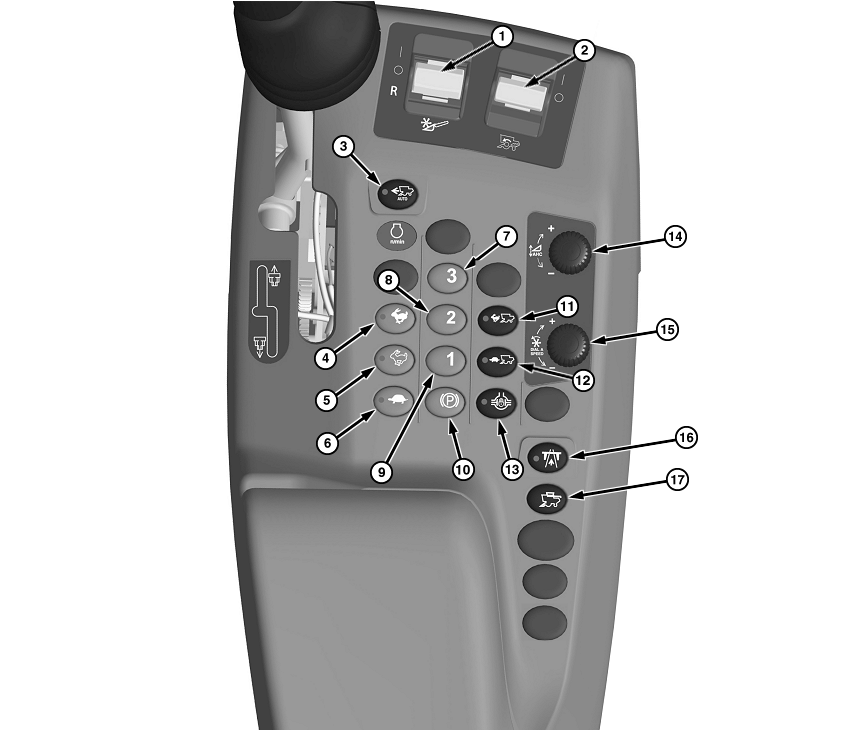

1 - Header Engage and Feeder House Reverser Switch

2 - Separator Engage Switch

3 - Harvest Smart™ Feed Rate Enable Switch (If Equipped)

4 - Engine Speed Switch (High Speed)

5 - Engine Speed Switch (Medium Speed)

6 - Engine Speed Switch (Low Speed)

7 - Push Button Shift 3rd Gear Switch (If Equipped)

8 - Push Button Shift 2nd Gear / ProDrive Mode 2 Switch (If Equipped)

9 - Push Button Shift 1st Gear / ProDrive Mode 1 Switch (If Equipped)

10 - Park Brake Switch (If Equipped)

11 - Four-Wheel Drive Switch (High Speed) (If Equipped)

12 - Four-Wheel Drive Switch (Slow Speed) (If Equipped)

13 - Differential Lock Switch (If Equipped)

14 - Header Height/HydraFlex™ Pressure Control Dial

15 - Dial-A-Speed Dial

16 - Road Transport Disconnect Switch

17 - Folding Functions Shortcut Switch (If Equipped)

Before operating machine, become familiar with switches and controls.
