Feeder House Doors

CAUTION:

H100486
H100486-UN-28FEB11

H90905
H90905-UN-27FEB08

A - Nuts

B - Door

C - Doors

Shut OFF engine, set parking brake and remove key.

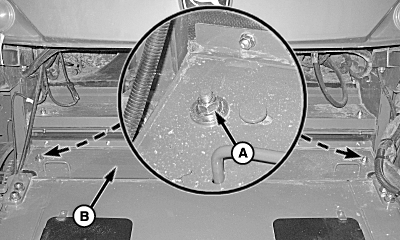

Loosen nuts (A) on each side of the door and push nuts towards center of feeder house.

Pull door (B) forward to remove.

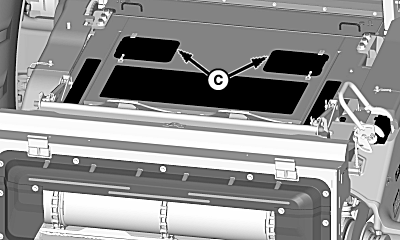

Lift doors (C) to access inside of feeder house.

OUO6075,0000B6F-19-20110321
