Chopper Vanes (Manual Adjust)—Factory Settings

H100407-UN-23FEB11

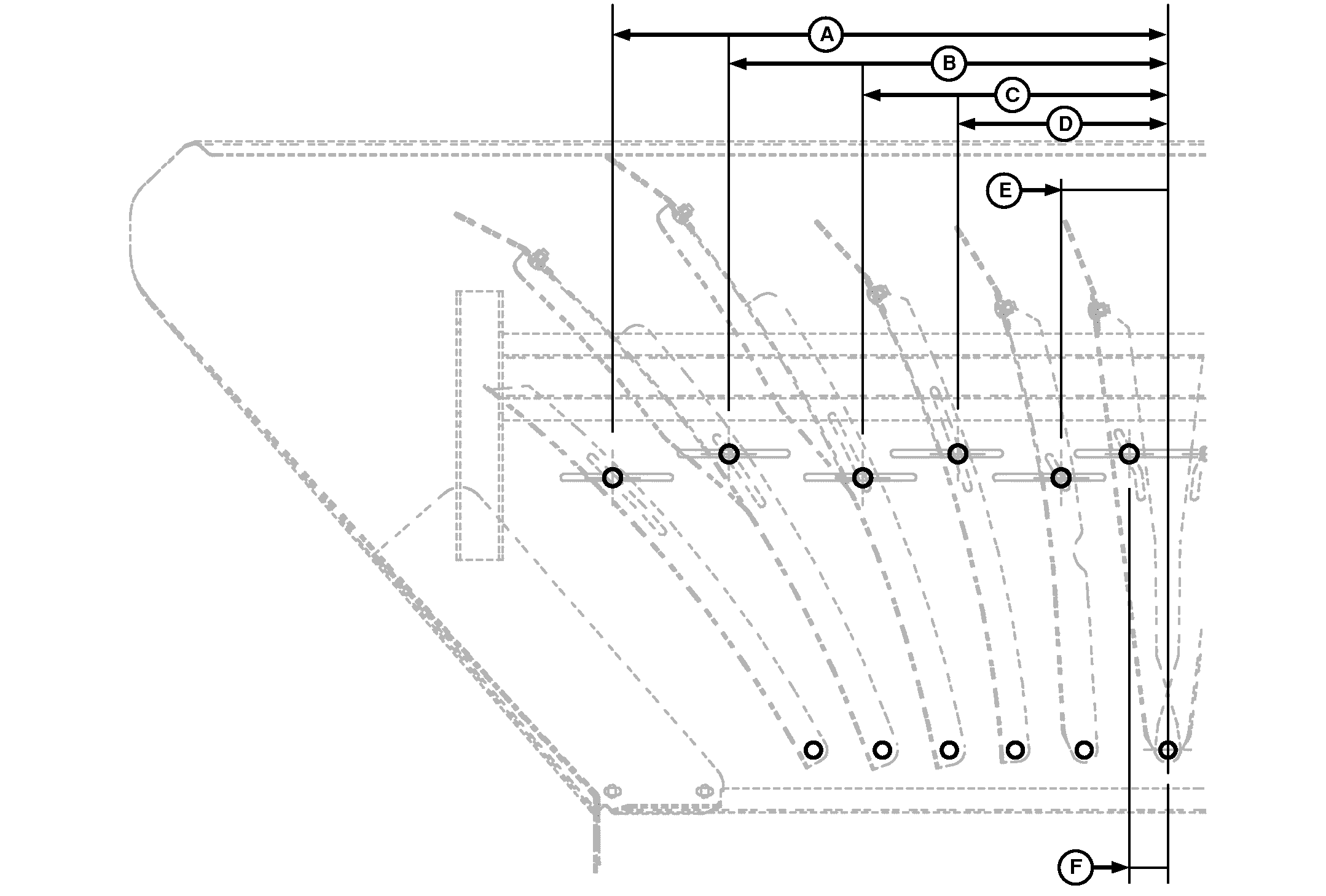

Chopper Settings For 9.1 m (30 ft.) Platforms (View From Above Chopper)

A - 693 mm (27.3 in.)

B - 548 mm (21.6 in.)

C - 382 mm (15 in.)

D - 262 mm (10.3 in.)

E - 133 mm (5.2 in.)

F - 48 mm (1.9 in.)
