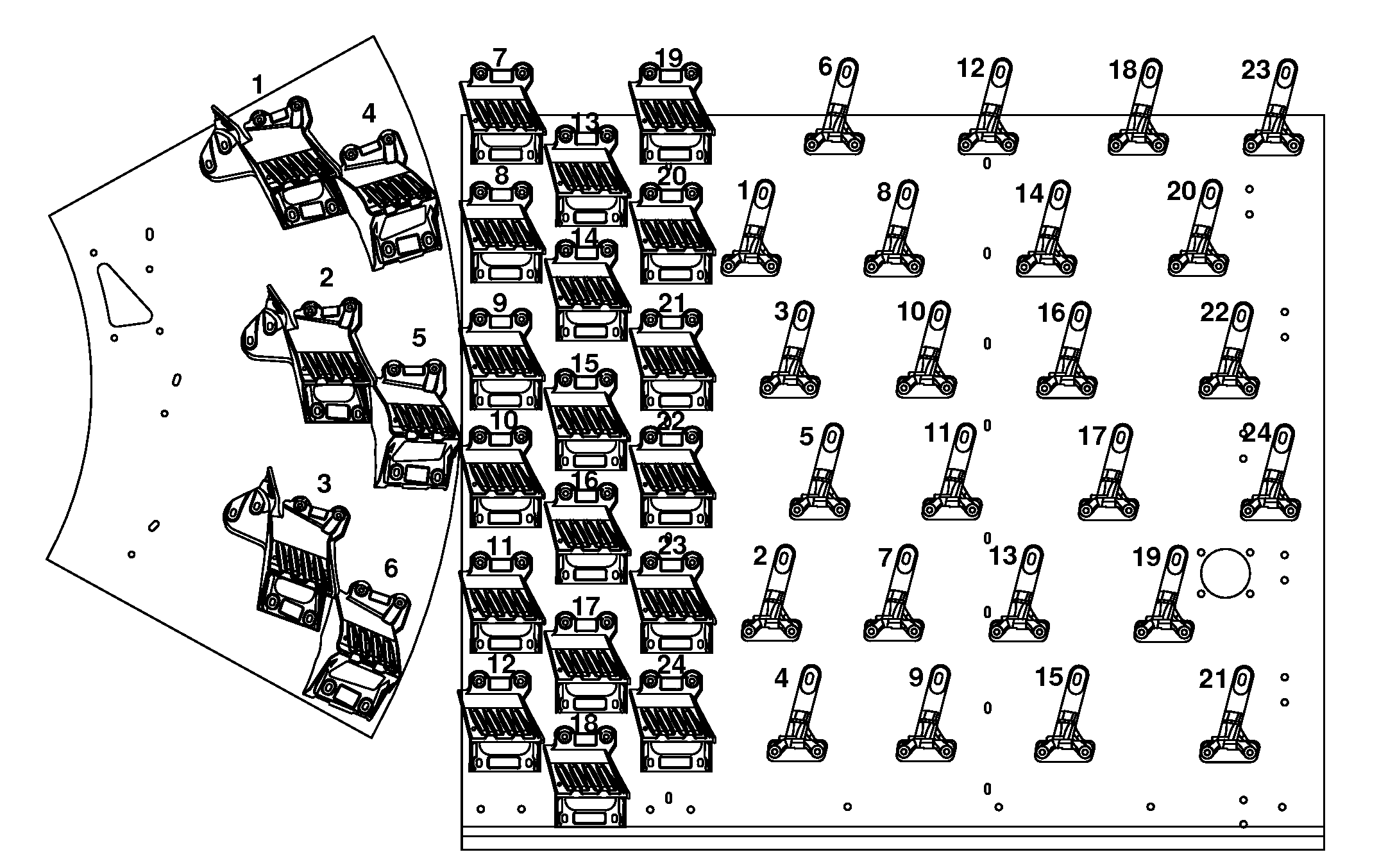

Threshing Element and Separator Tine Location (TriStream Rotor Dense Pack Configuration)

NOTE:

H82364-UN-03FEB05

Threshing Element Groups (Dense Pack Rotor Configuration)	Separator Tine Groups (Dense Pack Rotor Configuration)
Group 1 Elements = 1, 2, 3	Group 1 Tines = 1, 4, 5
Group 2 Elements = 4, 5, 6	Group 2 Tines = 2, 3, 6
Group 3 Elements = 7, 9, 11	Group 3 Tines = 8, 9, 11
Group 4 Elements = 8, 10, 12	Group 4 Tines = 7, 10, 12
Group 5 Elements = 13, 15, 17	Group 5 Tines = 13, 16, 18
Group 6 Elements = 14, 16, 18	Group 6 Tines = 14, 15, 17
Group 7 Elements = 19, 21, 23	Group 7 Tines = 19, 22, 23
Group 8 Elements = 20, 22, 24	Group 8 Tines = 20, 21, 24
