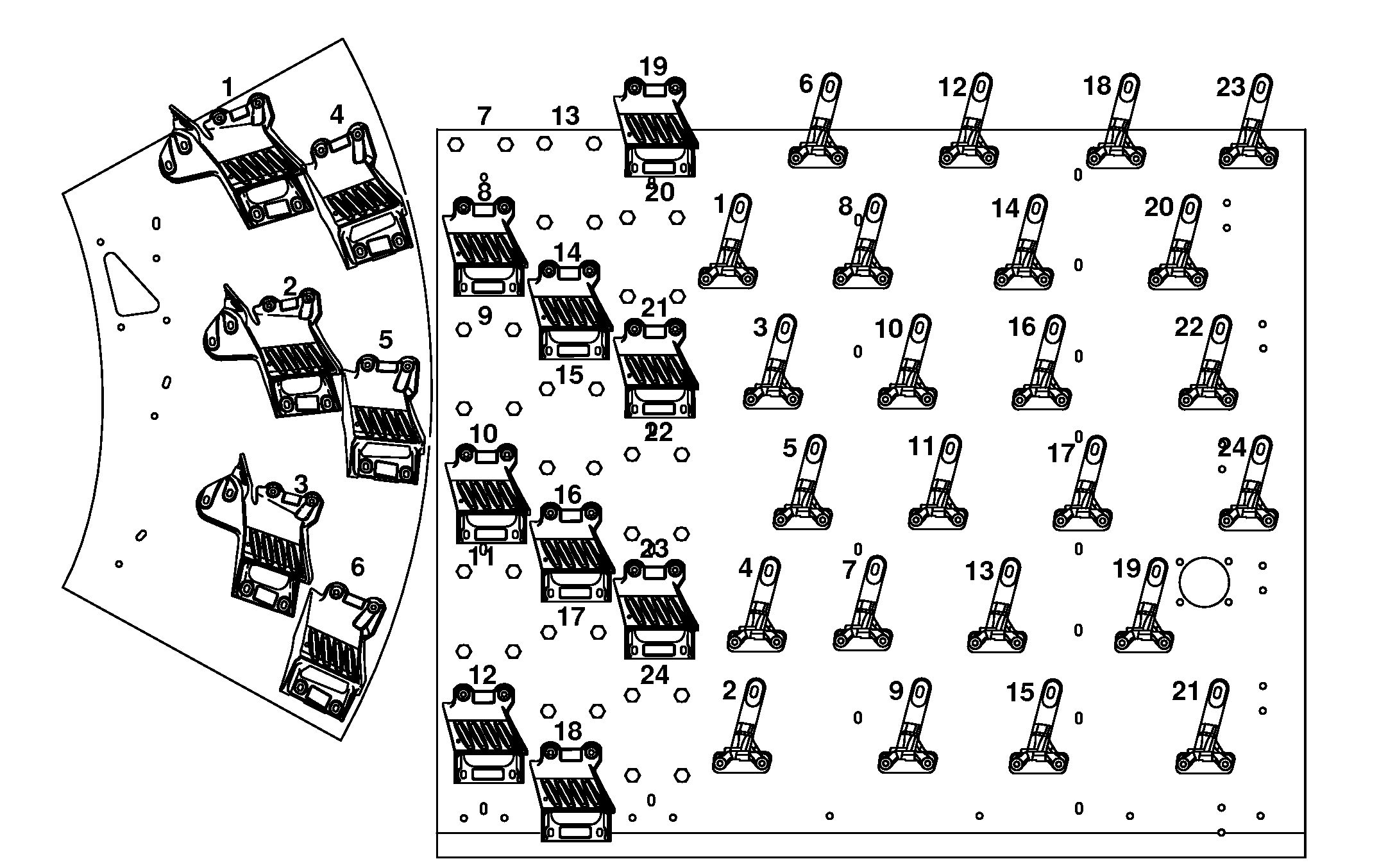

Threshing Element and Separator Tine Location (TriStream Rotor Tough Grain Configuration)

NOTE:

H82830
H82830-UN-23MAR05

Additional elements can be added to the tough grain configuration in locations with an ”O” stamped into the rotor if the dense pack configuration is desired.

Threshing Element Groups (Tough Grain Rotor Configuration)

Separator Tine Groups (Tough Grain Rotor Configuration)

Group 1 Elements = 1, 2, 3

Group 1 Tines = 1, 4, 5

Group 2 Elements = 4, 5, 6

Group 2 Tines = 2, 3, 6

Group 3 Elements = 8, 10, 12

Group 3 Tines = 8, 9, 11

Group 4 Elements = 14, 16, 18

Group 4 Tines = 7, 10, 12

Group 5 Elements = 19, 21, 23

Group 5 Tines = 13, 16, 18


Group 6 Tines = 14, 15, 17


Group 7 Tines = 19, 22, 23


Group 8 Tines = 20, 21, 24

OUO6075,0000B81-19-20110322
