Video Interface Capability

NOTE:

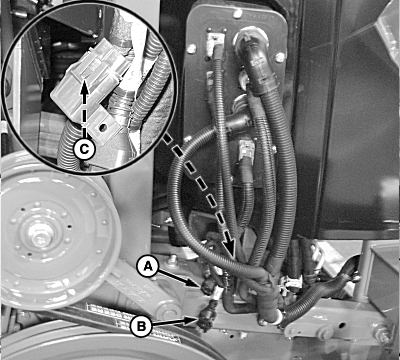

H101369-UN-06MAY11

A - Video Input (Armrest)

B - Video Input (Cornerpost)

C - In-Line Fuse

Connector labeled “ADU” feeds a video signal to the display on the armrest.

Connector labeled “CPDU” feeds a video signal for an optional display on the cornerpost.

Machine is equipped with two camera video inputs which are located at the right-hand side of operator’s station.

One of the video input (A) feeds video signal to the GreenStar™ 3 CommandCenter™ or GreenStar™ 3 2630 Display on the armrest.

Second video input (B) connects to the GreenStar™ 3 2630 Display (Optional) mounted on the cornerpost.

Both video inputs are located on the right-hand main harness and are protected with an in-line fuse (C) located near the video connections.

See your John Deere dealer for further information on video compatible camera solutions.
