Chaffer and Sieve—Measuring

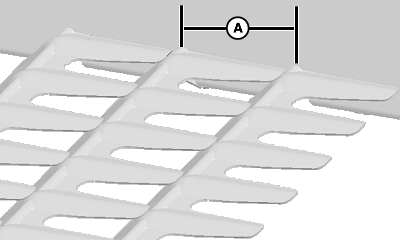

H89699-UN-21AUG07
A - Wire-To-Wire
Machines can be equipped with two different types of chaffer and sieves.- Deep-tooth chaffer and sieve.
- General Purpose chaffer and sieve.
Proper way to measure chaffer and sieve dimensions is from wire-to-wire (A). This can be used to determine if a deep-tooth or general purpose chaffer or sieve is installed.
|
OUO6075,0000C1E-19-20070822 |
